TYT

TYT TH-9000D Plus Mobile Car Radio VHF 144-148MH 60W 200 Channels Vehicle Transceiver with programming cable

$149.99

  • 65 Watt Heavy Duty Two Way VHF Mobile Transceiver with ctcss/dcs (PL & DPL).
  • 200 Alphanumeric Channels, Full Keypad Microphone. Cool-Blue Display Backlight. Includes mounting bracket & fused power Cable.
  • Features 3 Selectable Power levels, DTMF, Keypad lock, Scan modes & more!
  • Requires Optional Suitable VHF Antenna, & hookup to 12-14Vdc ( 12-14A)
Weight 1.6 kg
Dimensions 40 × 30 × 10 cm
Brand

TYT
Add $100.00 to cart and get free shipping!

Out of stock

Compare
Add to wishlist
SKU: TH-9000D Category: Tag:
Description

Description

TYT TH-9000D 60W VHF144-148MHz Mini Mobile Radio Transceiver Ham Radio For Bus Taxi Car Truck Radio Communication Two Way Radio

FCC ID:POD-TH9000DV

IC ID:10337A-TH9000DV



Main Functions:

  Frequency Range:   VHF:144-148MHz
  Output Power:        VHF: 10W/25W/60W
*  1750Hz Tone *  CTCSS/DCS setting & scanning
*  0-9 SQL grade setting *  Frequency/Channel scanning
*  High/Mid/Low power selectable *  Voice compander
*  Repeater offset shift *  Keypad lock function
*  Contact book *  Battery voltage display
*  DTMF/2 tone/5 tone *  ANI ID
*  Remote kill/ stun/ activate/ revive *  Emergenvy alarm
*  Wide/Narrow band setting *  TX inhibit
*  Busy Channel Lock-Out *  Channel name editing
*  Reverse frequency *  Talk around
*  Scrambler(Optional) *  Voice prompt
*  Time-out Timer *  Auto Power off
*  VFO step setting:5/6.25/10/12.5/20/25/50kHz



Specifications:

                             Item Number                                     TH-9000D
                                                                         General
Frequenvy Range 144-148MHZ
Channel Capacity 200
Channel Spacing 5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability 2.5ppm
Operating Temperature -20°C ~ + 60°C
Operating Voltage 13.8V DC ± 15%
Dimension(HxWxD)                            145mm x190mm x47mm
Weight(with bracket) 1200g
                                                                           Receiver
Reference Sensitivity 0.25V / 0.35V
Operating Bandwidth 60dB#12.5KHz /70dB#25KHz
Adjacent Channel Selectivity 60dB#12.5KHz 70dB#25KHz
Inter-modulation Rejection ≥60dB/ ≥65dB
Spurious Response Rejection ≥70dB
Rated Audio Response +1-+3dB
Rated Audio Distortion <5%
FM Hum&Noise ≥40dB#25KHz /≥45KHz #12.5KHz
                                                                             Transmitter
RF Power 45W/25W/10W(UHF)/60W/25W/10W(VHF)
Frequency Modulation 11kΦF3E / 16kΦF3E
Modulation Distortion <5%
FM Noise ≥36dB#25KHz /≥40KHz #12.5KHz
Adjacent Channel Power ≥60dB#12.5KHz /≥70KHz #25KHz
Audio Response +1-+3dB
Audio Distortion <5%



Package includes:

1* TYT TH-9000D VHF Mobile Transceiver

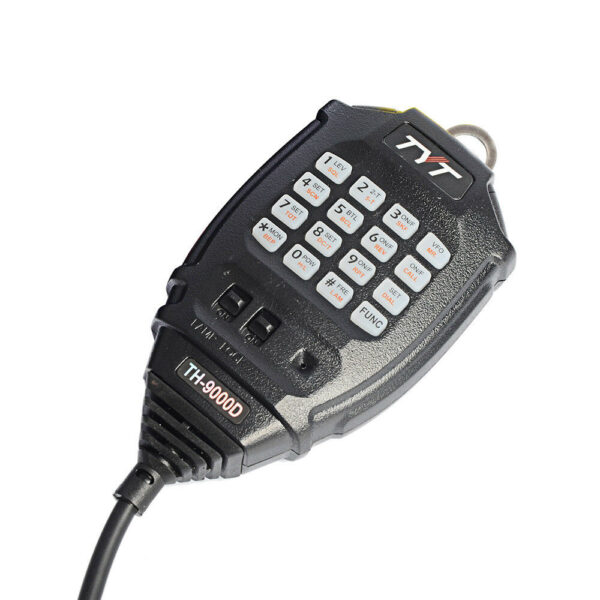

1* Handheld Microphone

1* Power Cable
1* Screws and Accessories
1* User’s Manual
1* Fixed Bracket





TH-9000D_01TH-9000D_02TH-9000D_03TH-9000D_04TH-9000D_05TH-9000D_06TH-9000D_07TH-9000D_08TH-9000D_09TH-9000D_10TH-9000D_11TH-9000D_12TH-9000D_13TH-9000D_14TH-9000D_15
